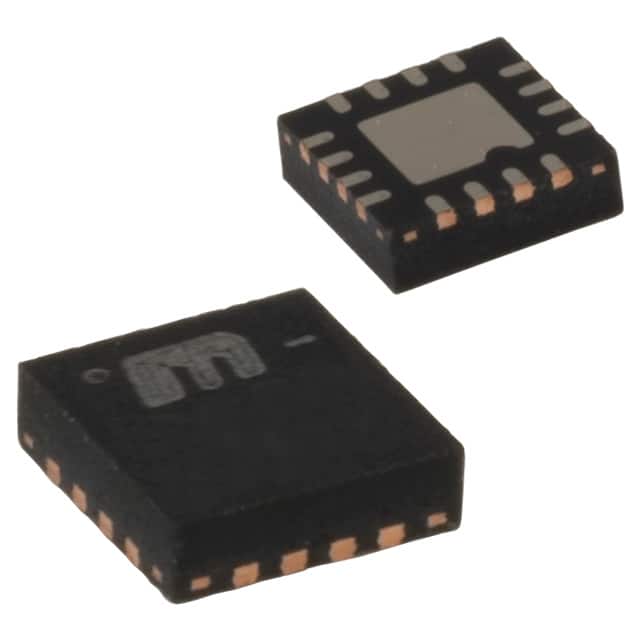

MIC2810-CGJYML-TR
IC REG TRPL BUCK/LNR 2MHZ 16MLFManufacturer: Microchip Technology
Categories: Linear + Switching
Quality Control: Learn More
The Microchip Technology MIC2810-CGJYML-TR is a versatile power management IC featuring a triple output configuration with one 2MHz synchronous buck converter and two independent linear low-dropout (LDO) regulators. This device is designed for space-constrained applications, offering a 1.2V, 600mA output from the buck stage, complemented by 1.8V/300mA and 2.5V/300mA outputs from the LDOs. The buck converter utilizes a 2MHz switching frequency to optimize the trade-off between efficiency and component size. Packaged in a compact 16-MLF® (4x4), the MIC2810-CGJYML-TR supports surface mount installation and operates across a temperature range of -40°C to 85°C. Its integrated power stages and minimal external component requirements make it suitable for portable electronics, wireless infrastructure, and other performance-critical systems. The supply voltage range for this component is 1.65V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 16-MLF® (4x4) |
| Voltage/Current - Output 1 | 1.2V, 600mA |
| Voltage/Current - Output 2 | 1.8V, 300mA |
| Voltage/Current - Output 3 | 2.5V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
