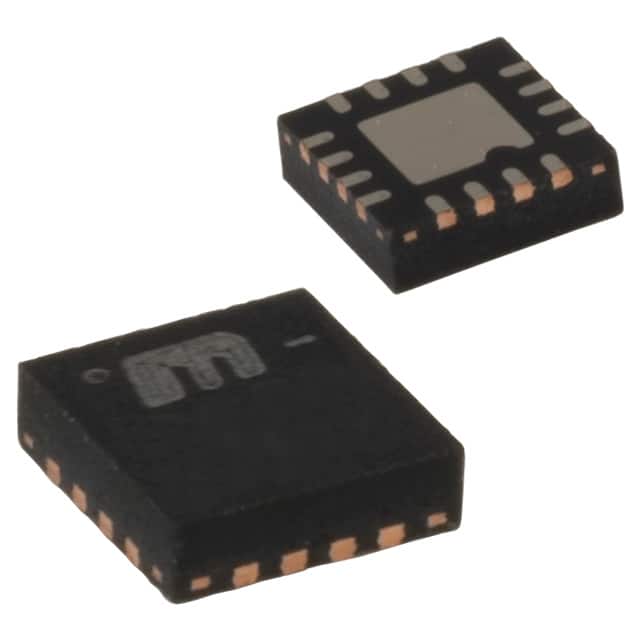

MIC2810-4MSYML-TR
IC REG TRPL BUCK/LNR 2MHZ 16MLFManufacturer: Microchip Technology
Categories: Linear + Switching
Quality Control: Learn More
Microchip Technology's MIC2810-4MSYML-TR is a versatile PMIC featuring a triple output voltage regulator configuration. This component integrates one 2MHz step-down (buck) converter with two low-dropout (LDO) linear regulators. The device is housed in a compact 16-MLF® (4x4) package, suitable for surface mount applications. Output 1 provides 1.2V at 600mA from the buck converter, while outputs 2 and 3 deliver 2.8V and 3.3V respectively, each with up to 300mA from the LDOs. The operating temperature range is -40°C to 85°C, and it operates from a supply voltage of 1.65V to 5.5V. This solution is well-suited for power management in portable electronics and industrial control systems. The MIC2810-4MSYML-TR is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 16-MLF® (4x4) |
| Voltage/Current - Output 1 | 1.2V, 600mA |
| Voltage/Current - Output 2 | 2.8V, 300mA |
| Voltage/Current - Output 3 | 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
