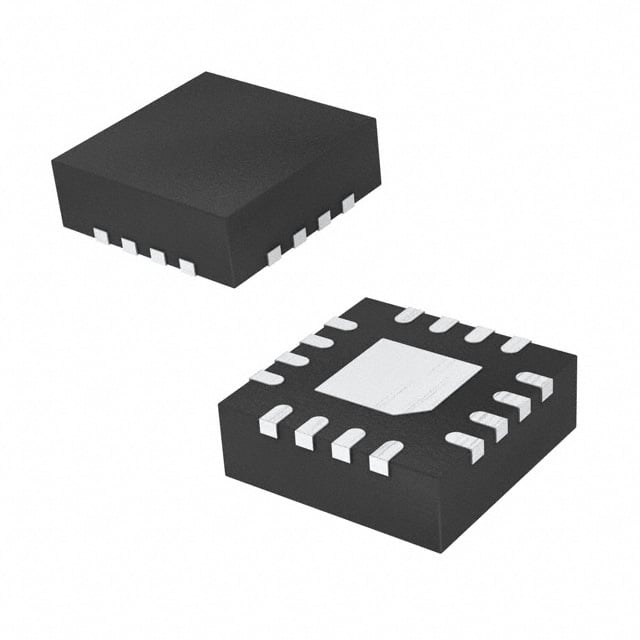

MIC2810-1JGMYML-TR
IC REG TRPL BUCK/LNR 2MHZ 16MLFManufacturer: Microchip Technology
Categories: Linear + Switching
Quality Control: Learn More
The Microchip Technology MIC2810-1JGMYML-TR is a power management integrated circuit featuring a triple output configuration. This device integrates one 2MHz synchronous step-down (buck) converter with two low-dropout (LDO) linear regulators. The buck converter offers a maximum output current of 600mA, while the two LDOs provide 300mA each. Designed for surface mount applications, it is supplied in a 16-MLF® (3x3) package, delivered on tape and reel. The operating voltage range for this component is 1.65V to 5.5V, and it operates within an ambient temperature range of -40°C to 85°C. This versatile PMIC is suitable for applications in consumer electronics, portable devices, and industrial automation requiring efficient and flexible voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 16-MLF® (3x3) |
| Voltage/Current - Output 1 | -, 600mA |
| Voltage/Current - Output 2 | -, 300mA |
| Voltage/Current - Output 3 | -, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
