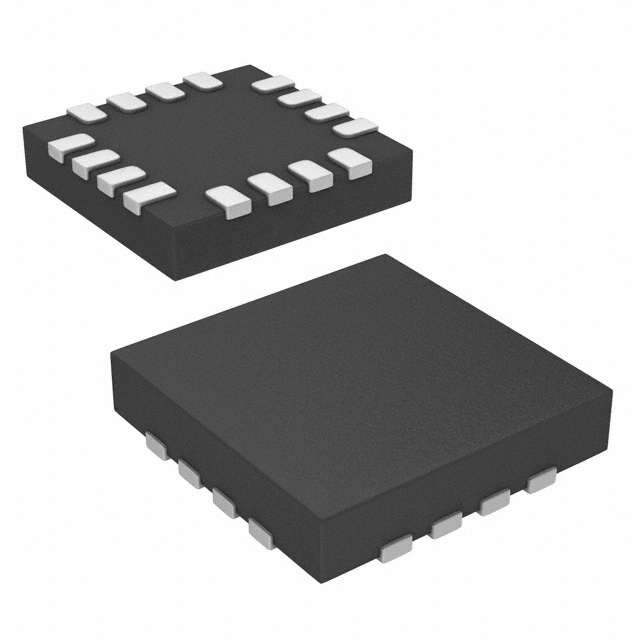

MIC2800-G4KYML-TR
IC REG TRPL BUCK/LNR 2MHZ 16QFNManufacturer: Microchip Technology
Categories: Linear + Switching
Quality Control: Learn More
The Microchip Technology MIC2800-G4KYML-TR is a power management integrated circuit featuring a triple output architecture. This component combines one 2MHz step-down (buck) regulator with two linear (LDO) regulators, offering a versatile solution for power delivery. The device operates within a 2.7V to 5.5V supply voltage range and supports surface mount installation via its 16-QFN (3x3) package, supplied on tape and reel.
The MIC2800-G4KYML-TR provides three regulated outputs: 1.8V at 600mA, 1.2V at 300mA, and 2.6V at 300mA. Its switching frequency of 2MHz is suitable for applications requiring efficient power regulation and compact PCB layouts. This component is designed for operation across an extended temperature range of -40°C to 125°C, making it well-suited for demanding environments. It finds application in various consumer electronics, mobile devices, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage/Current - Output 1 | 1.8V, 600mA |
| Voltage/Current - Output 2 | 1.2V, 300mA |
| Voltage/Current - Output 3 | 2.6V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
