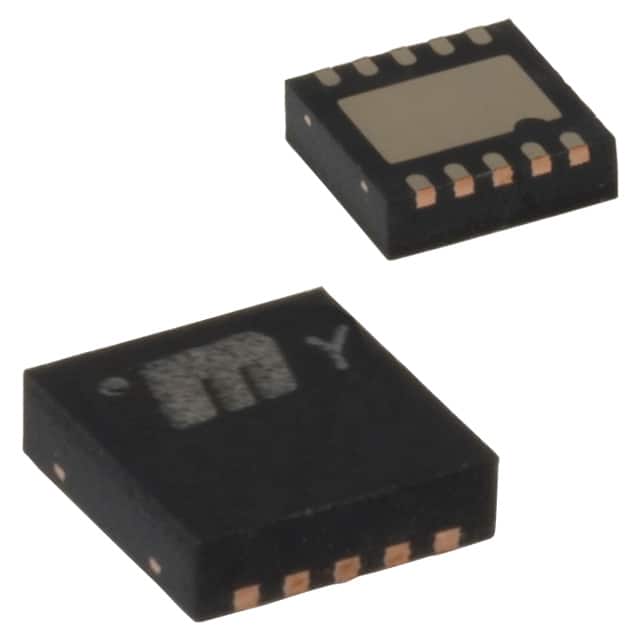

MIC2206-83YML-TR
IC REG DL BUCK/LINEAR SYNC 10MLFManufacturer: Microchip Technology
Categories: Linear + Switching
Quality Control: Learn More
The Microchip Technology MIC2206-83YML-TR is a dual-output power management IC featuring a synchronous buck regulator and a linear low-dropout (LDO) regulator. This device offers one output capable of delivering 1A at 0.83V and a second output providing 120mA at 1V. The synchronous buck converter operates at a switching frequency of 2MHz, contributing to efficient power conversion. The MIC2206-83YML-TR is housed in a 10-MLF® (3x3) package, suitable for surface mount applications. It operates across a temperature range of -40°C to 125°C (TJ) and is supplied on a tape and reel. This component is commonly utilized in applications such as portable electronics and battery-powered devices requiring flexible and efficient voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad, 10-MLF® |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Frequency - Switching | 2MHz |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Supplier Device Package | 10-MLF® (3x3) |
| Voltage/Current - Output 1 | 0.83V, 1A |
| Voltage/Current - Output 2 | 1V, 120mA |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 2 |
