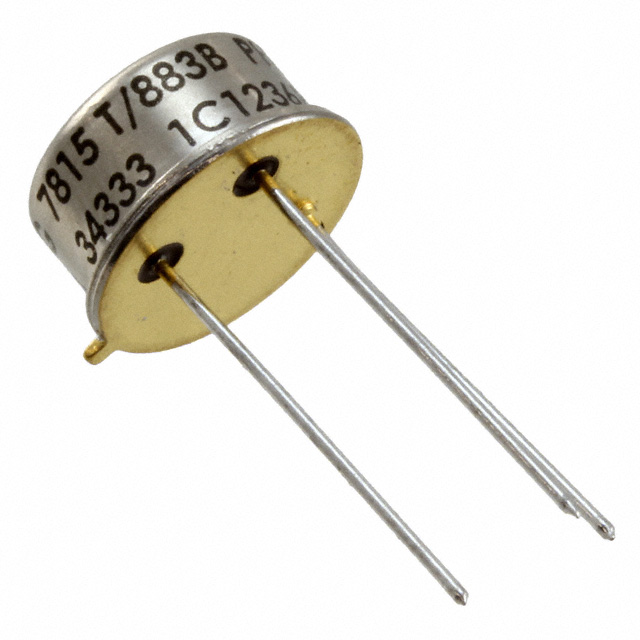

SG7815T-883B
IC REG LINEAR 15V 500MA TO39Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-39
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-39-3 Lens Top Metal Can |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -55°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-39 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 15V |
| Control Features | - |
| Grade | Military |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 2.5V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Qualification | MIL-STD-883 |
