SG137AT-883B
IC REG LIN NEG ADJ 500MA TO39Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

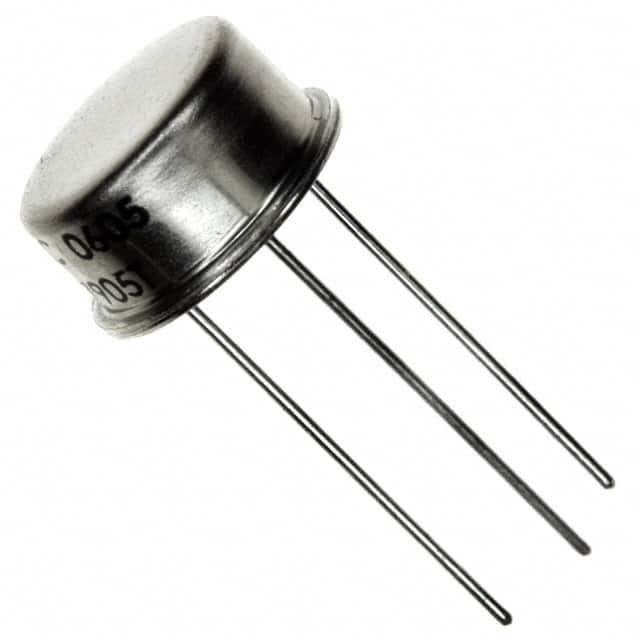

Linear Voltage Regulator IC Negative Adjustable 1 Output 500mA TO-39
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -55°C ~ 125°C |
| Output Configuration | Negative |
| Voltage - Input (Max) | -36V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-39 |
| Voltage - Output (Max) | -36V |
| Voltage - Output (Min/Fixed) | -1.25V |
| Control Features | - |
| Grade | Military |
| PSRR | 66dB ~ 80dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Over Voltage |
| Qualification | MIL-STD-883 |
Request a Quote
