MIC94310-FYCS-TR
IC REG LINEAR 1.5V 200MA 4WLCSPManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

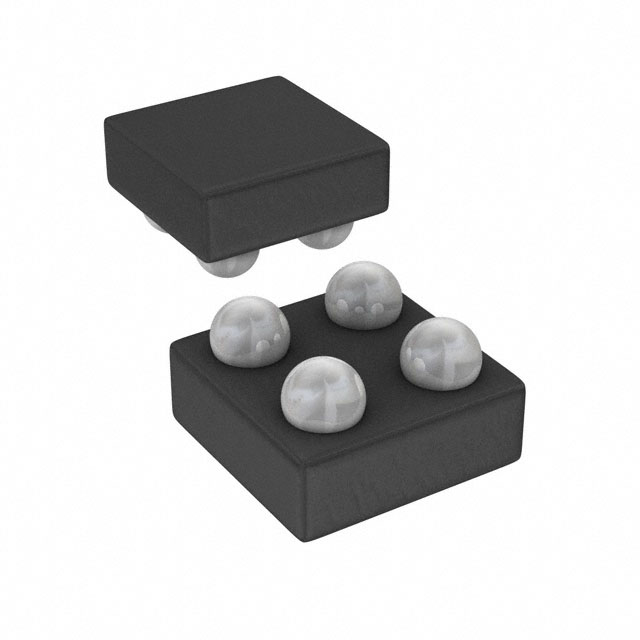

Microchip Technology's MIC94310-FYCS-TR is a Ripple Blocker™ series linear voltage regulator. This device provides a fixed 1.5V output with a 200mA current capability. Designed for surface mounting in a compact 4-WLCSP (0.88x0.88) package, it features an Enable pin for control. The regulator offers high Power Supply Rejection Ratio (PSRR) performance, ranging from 85dB at 100Hz to 50dB at 10MHz, making it suitable for noise-sensitive applications. Protection features include over-current and over-temperature shutdown. The quiescent current is rated at 250 µA, and the dropout voltage is a low 0.1V at 200mA. This component is ideal for portable electronics, battery-powered devices, and automotive applications where efficient voltage regulation and low noise are critical. Operating temperature range is -40°C to 125°C.
Additional Information
Series: Ripple Blocker™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 250 µA |
| Voltage - Input (Max) | 3.6V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-WLCSP (0.88x0.88) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 85dB ~ 50dB (100Hz ~ 10MHz) |
| Voltage Dropout (Max) | 0.1V @ 200mA |
| Protection Features | Over Current, Over Temperature |
