MIC68401YML-TR
IC REG LINEAR POS ADJ 3A 16QFNManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Microchip Technology MIC68401YML-TR is a high-performance, low-dropout linear voltage regulator designed for demanding applications. This adjustable positive output regulator delivers up to 3A with a typical dropout voltage of 0.5V at 3A, ensuring efficient power delivery. Featuring an input voltage range up to 5.5V and an output voltage adjustable from 0.5V, it offers flexibility for various power supply designs.

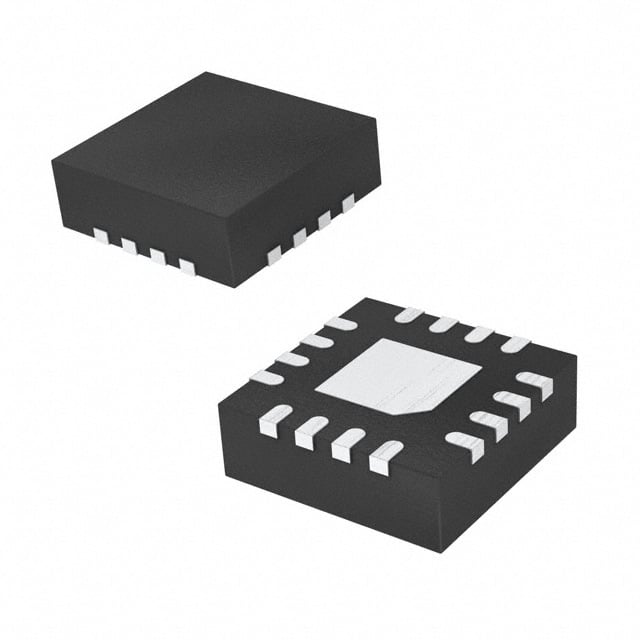

Key control features include an Enable pin and Power On Reset, facilitating robust power sequencing capabilities. Protection mechanisms such as over-current, over-temperature, and reverse polarity are integrated to safeguard the system. The MIC68401YML-TR is supplied in a compact 16-QFN (4x4) exposed pad package, suitable for surface mounting and optimized for thermal performance. This component is widely utilized in automotive, industrial, and consumer electronics where reliable voltage regulation is critical. The product is supplied in tape and reel packaging for high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 16-QFN (4x4) |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V or Tracking |
| Control Features | Enable, Power On Reset, Power Sequencing |
| PSRR | - |
| Voltage Dropout (Max) | 0.5V @ 3A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
