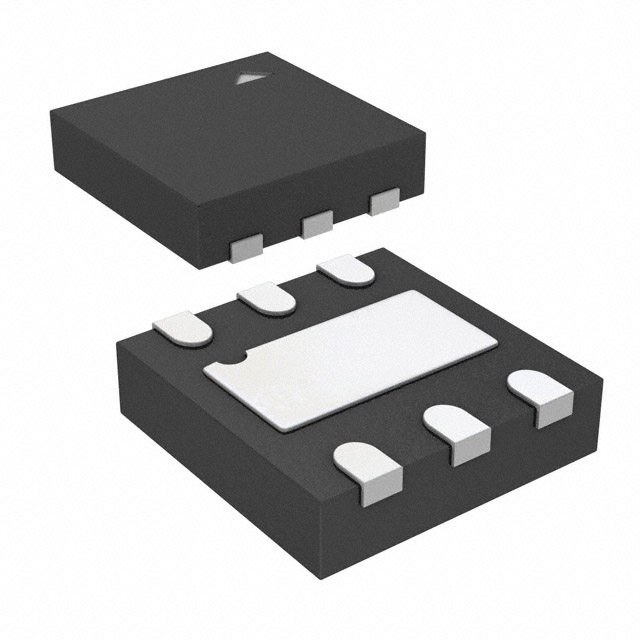

MIC5393-SSYMX-T5
IC REG LINEAR 3.3V/3.3V 6XTDFNManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 2 Output 150mA, 150mA 6-XTDFN (1.2x1.2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA, 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 45 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 6-XTDFN (1.2x1.2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V, 3.3V |
| Control Features | Enable |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | 0.31V @ 150mA, 0.31V @ 150mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 85 µA |
