MIC5374-MG44YMT-TR
IC REG LIN 2.8/1.8/1.2V 16MLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MIC5374-MG44YMT-TR is a highly integrated, quad output linear voltage regulator designed for applications demanding precise voltage regulation and low quiescent current. This device offers four fixed positive output voltages: 2.8V, 1.8V, and two 1.2V rails, each capable of supplying up to 200mA, with one rail providing 1mA. The quiescent current is a mere 20 µA, making it suitable for battery-powered systems. With a maximum input voltage of 5.5V and dropout voltages as low as 0.33V at 150mA, it provides efficient power conversion. Protection features include over-current and over-temperature shutdown. The regulator's performance is further enhanced by a Power Supply Rejection Ratio (PSRR) of 55dB at 1kHz. Packaged in a 16-MLF® (2.5x2.5) surface-mount configuration and supplied on tape and reel, this component is commonly utilized in portable electronics, consumer devices, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

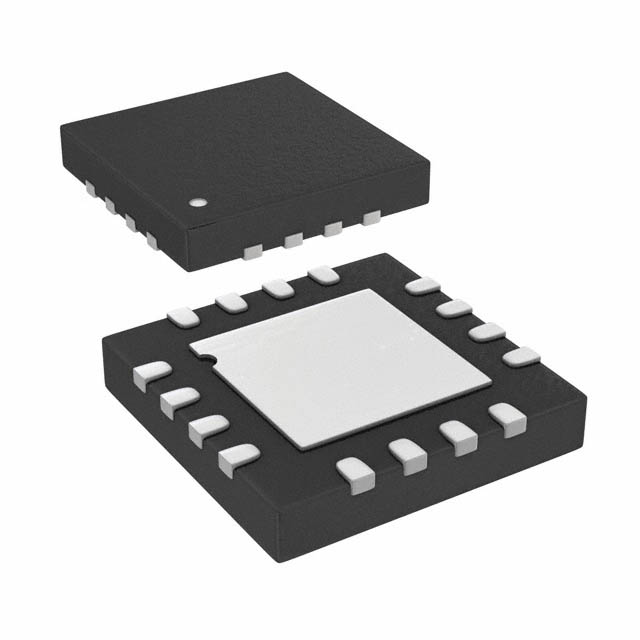

| Package / Case | 16-UFQFN Exposed Pad, 16-MLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA, 200mA, 200mA, 1mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 20 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 4 |
| Supplier Device Package | 16-MLF® (2.5x2.5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.8V, 1.8V, 1.2V, 1.2V |
| Control Features | Enable, Power On Reset |
| PSRR | 55dB (1kHz) |
| Voltage Dropout (Max) | 0.33V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA |
| Protection Features | Over Current, Over Temperature |
