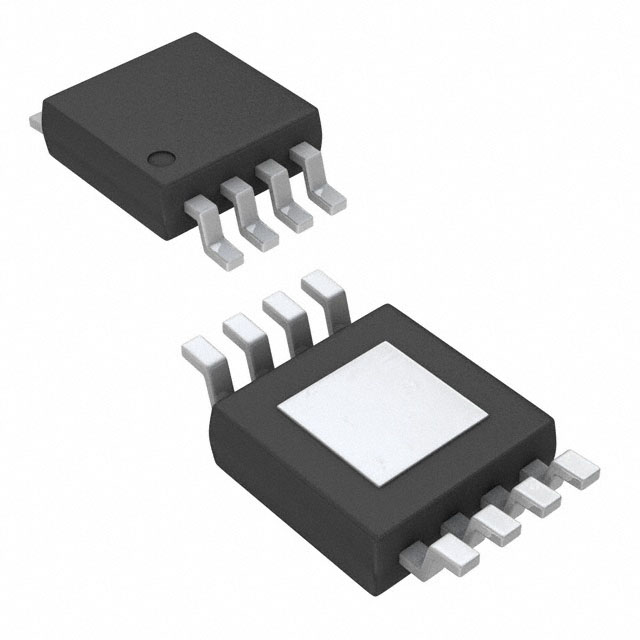

MIC5356-G4YMME-TR
IC REG LINEAR 1.2V/1.8V 8MSOPManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MIC5356-G4YMME-TR is a dual-output, fixed-voltage, low-dropout linear voltage regulator. This component provides two independent positive outputs, each capable of delivering up to 500mA with a typical voltage dropout of 0.8V at full load. The MIC5356-G4YMME-TR features a low quiescent current of 0.53 µA, making it suitable for battery-powered applications. Protection features include over-current and over-temperature shutdown. The device operates from an input voltage range up to 5.5V and offers excellent power supply rejection ratio (PSRR) of 60dB at 1kHz. With its compact 8-MSOP-EP package, this regulator is ideal for use in portable electronics, consumer devices, and industrial control systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA, 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 0.53 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-MSOP-EP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V |
| Control Features | Enable |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | 0.8V @ 500mA, 0.8V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 200 µA |
