MIC5350-PGYMT-TR
IC REG LINEAR 3V/1.8V 8TMLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MIC5350-PGYMT-TR is a dual-output, fixed linear voltage regulator. This device provides a 3V output at up to 300mA and a 1.8V output at up to 500mA, both with positive fixed output configurations. The regulator features a low dropout voltage of 0.2V at 300mA and 0.3V at 500mA. With an input voltage range of up to 5.5V, it offers Power Supply Rejection Ratio (PSRR) performance of 50dB to 35dB across the 1kHz to 20kHz frequency range. Key control features include an enable pin, and protection is provided against overcurrent and overtemperature conditions. The quiescent current is 175 µA, with a maximum supply current draw of 240 µA. This component is supplied in an 8-TMLF® (2x2) package, designed for surface mount applications, and delivered on tape and reel. Its capabilities make it suitable for use in consumer electronics, industrial control systems, and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

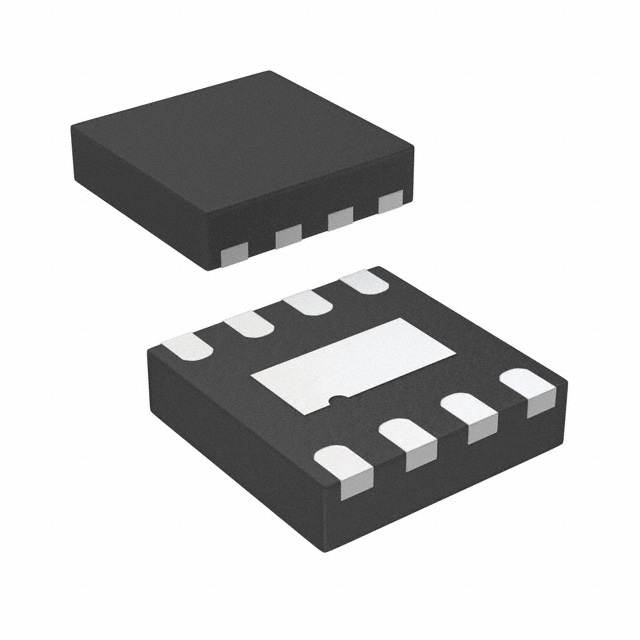

| Package / Case | 8-UFDFN Exposed Pad, 8-TMLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA, 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 175 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-TMLF® (2x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V, 1.8V |
| Control Features | Enable |
| PSRR | 50dB ~ 35dB (1kHz ~ 20kHz) |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.3V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 240 µA |
