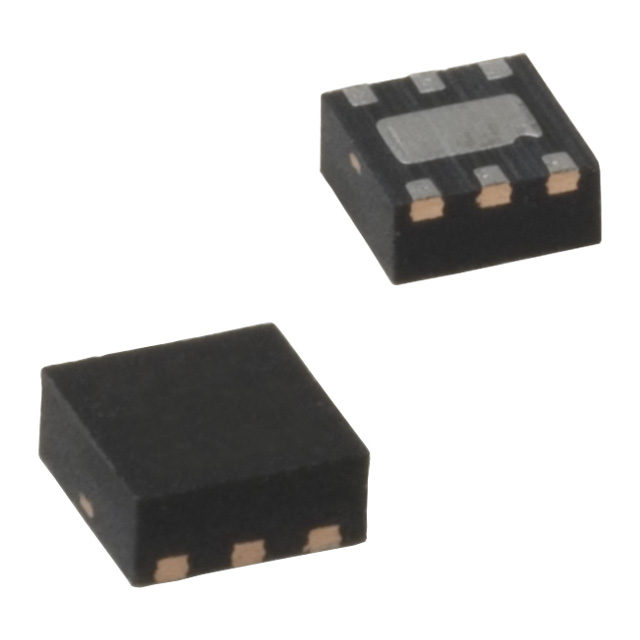

MIC5335-GGYMT-TR
IC REG LINEAR 1.8V/1.8V 6TMLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology MIC5335-GGYMT-TR is a dual output, low dropout linear voltage regulator. This device provides two fixed 1.8V outputs, each capable of delivering up to 300mA. The MIC5335-GGYMT-TR features a low quiescent current of 125 µA, making it suitable for battery-powered applications. Protection features include over current and over temperature shutdown. With an input voltage range up to 5.5V and a low dropout voltage of 0.2V at 300mA, it offers efficient power regulation. The device is supplied in a compact 6-TMLF® (1.6x1.6) package, ideal for space-constrained designs. Typical applications include consumer electronics, portable devices, and automotive systems. The regulator is available in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA, 300mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 125 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V, 1.8V |
| Control Features | Enable |
| PSRR | 65dB ~ 45dB (1kHz ~ 20kHz) |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 220 µA |
