MIC5317-3.0YMT-TR
SINGLE, HIGH PERFORMANCE 150MA LManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

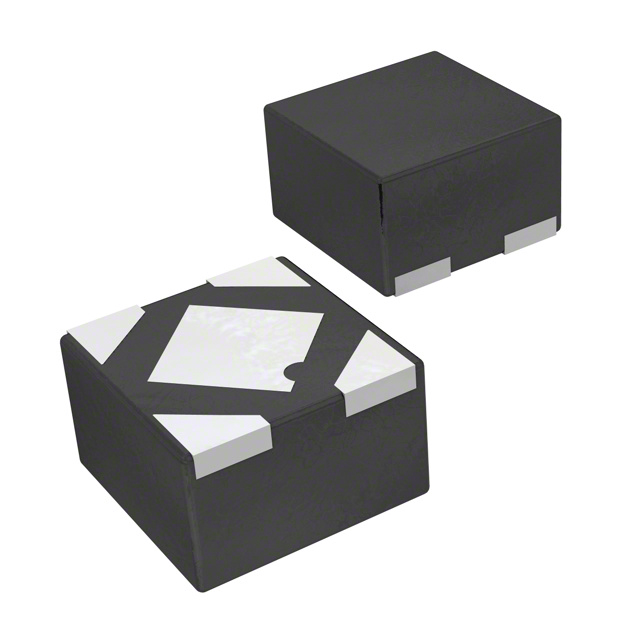

Microchip Technology's MIC5317-3-0YMT-TR is a single, high-performance 150mA LDO linear voltage regulator. This fixed 3V output device features a low quiescent current of 39 µA and a dropout voltage of only 0.31V at 150mA, making it suitable for power-sensitive applications. The regulator offers robust protection with overcurrent and overtemperature shutdown capabilities. Its 4-TDFN (1x1) exposed pad package ensures efficient thermal management for surface mount applications. With an input voltage range up to 6V and excellent Power Supply Rejection Ratio (PSRR) from 80dB to 65dB across the 1kHz to 10kHz frequency range, the MIC5317-3-0YMT-TR is well-suited for use in consumer electronics, battery-powered devices, and automotive systems. This component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 39 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-TDFN (1x1) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 80dB ~ 65dB (1kHz ~ 10kHz) |
| Voltage Dropout (Max) | 0.31V @ 150mA |
| Protection Features | Over Current, Over Temperature |
