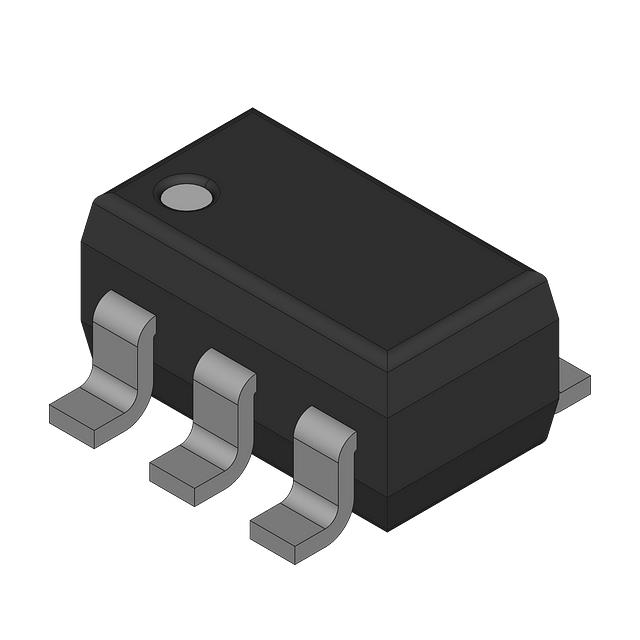

MIC5246-3.3BM5-TR
IC REG LINEAR 3.3V 150MA SOT23-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MIC5246-3-3BM5-TR is a fixed output linear voltage regulator IC designed for applications requiring stable power. This positive regulator delivers a 3.3V output with a maximum current capability of 150mA. Key features include a low quiescent current of 150µA, an enable pin for power control, and robust protection against over current, over temperature, and under voltage lockout (UVLO). The device exhibits a typical dropout voltage of 0.25V at 150mA and offers a Power Supply Rejection Ratio (PSRR) of 50dB at 120Hz. Operating within a temperature range of -40°C to 125°C, it is housed in a compact SOT-23-5 package and supplied on tape and reel. This component is suitable for use in portable electronics, battery-powered devices, and automotive applications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 50dB (120Hz) |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
