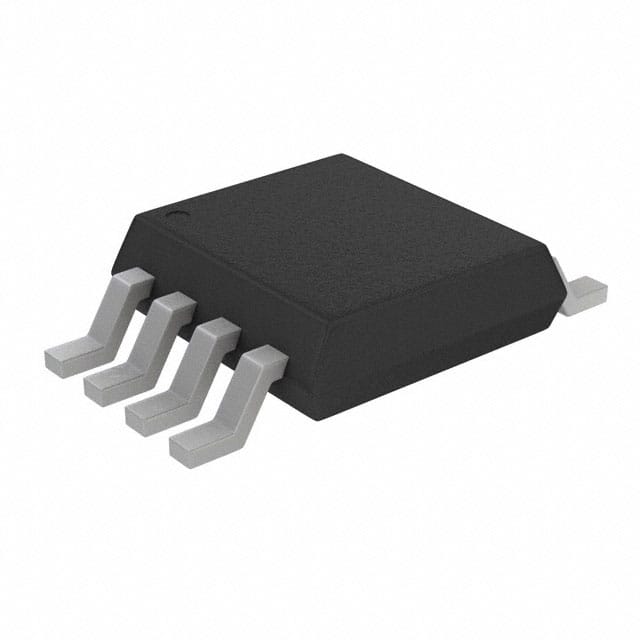

MIC5236YMM
IC REG LIN POS ADJ 150MA 8MSOPManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 8-MSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 30 µA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-MSOP |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Protection Features | Load Dump, Over Current, Over Temperature, Over Voltage, Reverse Polarity |
| Current - Supply (Max) | 5 mA |
