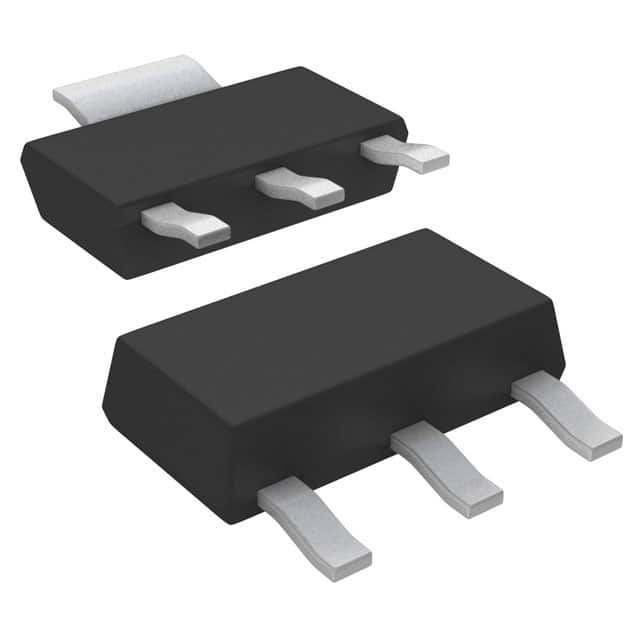

MIC5209-3.0YS
IC REG LINEAR 3V 500MA SOT223-3Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-223-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 170 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 25 mA |
