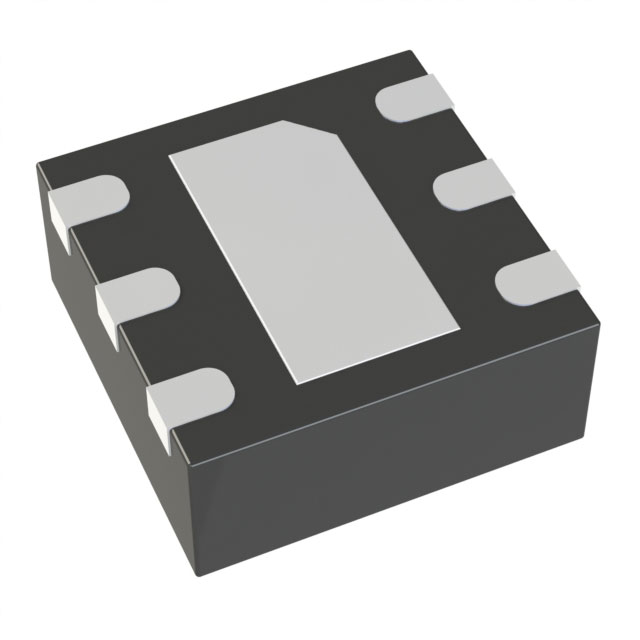

MIC47050YML-TRVAO
IC REG LINEAR POS ADJ 500MA 6MLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 6-DFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 15 µA |
| Voltage - Input (Max) | 3.6V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-DFN (2x2) |
| Voltage - Output (Max) | 2V |
| Voltage - Output (Min/Fixed) | 0.4V |
| Control Features | Enable, Power Good |
| Grade | Automotive |
| PSRR | 50dB ~ 37dB (10kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.12V @ 500mA |
| Protection Features | Over Temperature, Under Voltage Lockout (UVLO) |
| Qualification | AEC-Q100 |
