MIC29750-5.0BWT
IC REG LINEAR 5V 7.5A TO247-3Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MIC29750-5-0BWT is a high-current, positive fixed voltage linear regulator. This device delivers a stable 5V output with a maximum output current capability of 7.5A, making it suitable for power-intensive applications. The regulator features a low dropout voltage of 0.75V at full load, ensuring efficient operation. Protection mechanisms include overcurrent, overtemperature, reverse polarity, and transient voltage suppression, enhancing system reliability. The TO-247-3 package facilitates through-hole mounting. This component finds application in areas such as automotive power systems, industrial control, and high-power consumer electronics where robust voltage regulation is critical. The operating temperature range for the MIC29750-5-0BWT is -40°C to 125°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

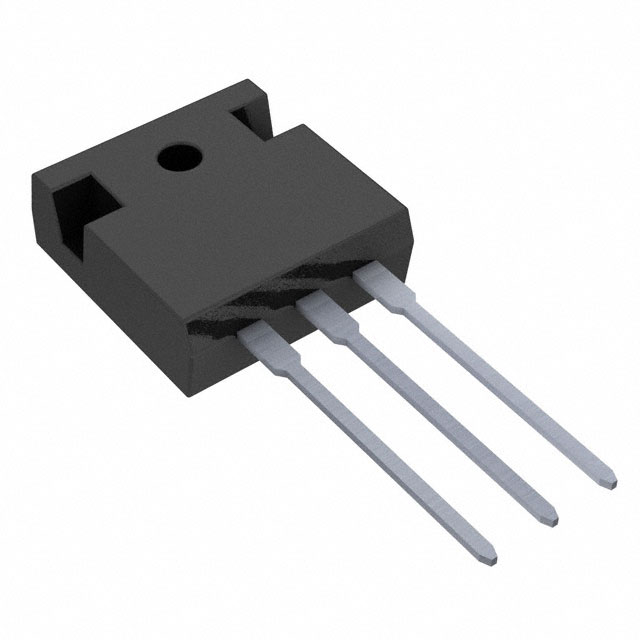

| Package / Case | TO-247-3 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 7.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-247-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.75V @ 7.5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
