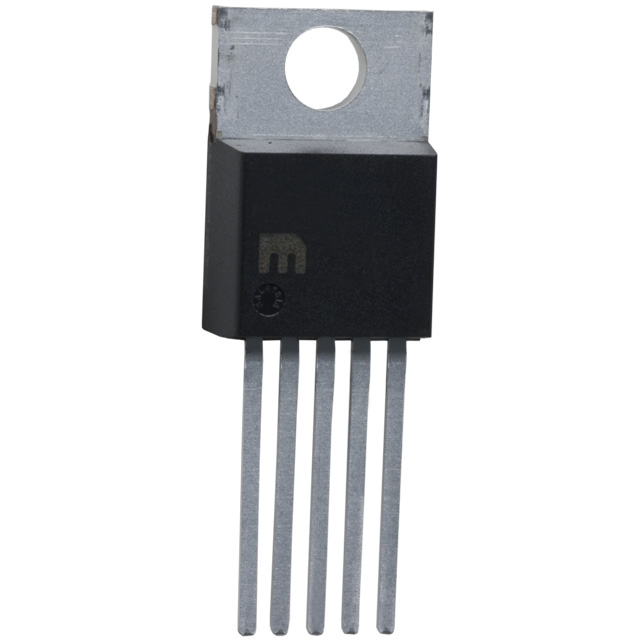

MIC29372WT
IC REG LIN POS ADJ 750MA TO220-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Microchip Technology MIC29372WT is a high-performance, adjustable positive linear voltage regulator designed for applications requiring efficient power management. This TO-220-5 packaged device delivers a robust 750mA output current with a low dropout voltage of just 0.75V at its maximum current. Featuring an adjustable output voltage range from 1.24V up to 26V, it offers flexibility for diverse power supply designs. The MIC29372WT includes essential protection mechanisms such as overcurrent and overtemperature shutdown, ensuring device reliability. With a quiescent current of 300 µA and an enable pin for power sequencing, this regulator is well-suited for use in automotive, industrial, and consumer electronics. The through-hole mounting type simplifies integration into existing PCB layouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 750mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 300 µA |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 26V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.75V @ 750mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 16 mA |
