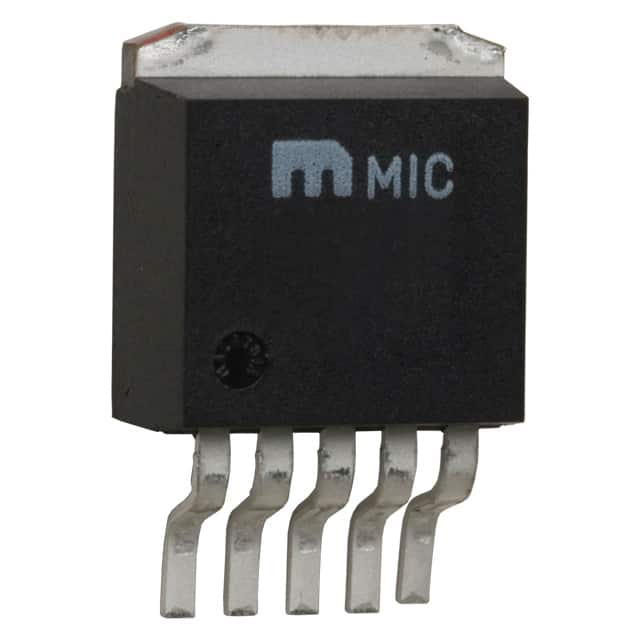

MIC29302AWU
IC REG LINEAR POS ADJ 3A TO263-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 20 mA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263-5 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.8V @ 3A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 150 mA |
