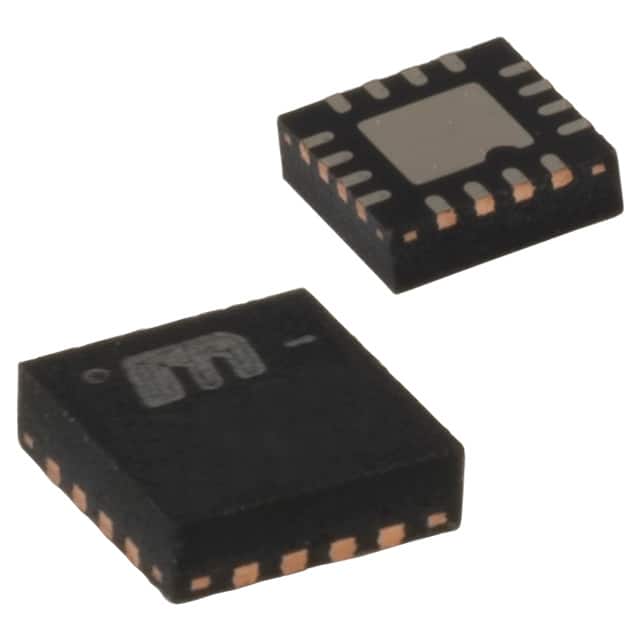

MIC2215-PPMYML-TR
IC REG LINEAR 3V/3V/2.8V 16MLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 3 Output 250mA, 250mA, 250mA 16-MLF® (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA, 250mA, 250mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 3 |
| Supplier Device Package | 16-MLF® (4x4) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V, 3V, 2.8V |
| Control Features | Enable |
| PSRR | 70dB ~ 45dB (100Hz ~ 1kHz) |
| Voltage Dropout (Max) | 0.275V @ 250mA, 0.275V @ 250mA, 0.275V @ 250mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 550 µA |
