MIC2213-GNBML-TR
IC REG LINEAR 1.8V/2.85V 10MLFManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Microchip Technology MIC2213-GNBML-TR is a dual-output, fixed linear voltage regulator. This device provides 1.8V and 2.85V outputs with maximum current capabilities of 150mA and 300mA respectively. It features low quiescent current at 80 µA and excellent power supply rejection ratio (PSRR) of up to 60dB at 1kHz, transitioning to 40dB at 20kHz. Dropout voltage is specified at 0.25V for the 150mA output and 0.42V for the 300mA output. Control features include enable and power-on reset. Protection mechanisms are integrated for over-current and over-temperature conditions. The MIC2213-GNBML-TR is supplied in a 10-MLF® (3x3) package, tape and reel, suitable for surface mounting. This component finds application in battery-powered devices, portable electronics, and various consumer and industrial systems requiring efficient and stable power regulation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad, 10-MLF® |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA, 300mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 10-MLF® (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V, 2.85V |
| Control Features | Enable, Power On Reset |
| PSRR | 60dB ~ 40dB (1KHz ~ 20kHz) |
| Voltage Dropout (Max) | 0.25V @ 150mA, 0.42V @ 300mA |
| Protection Features | Over Current, Over Temperature |
Request a Quote
Clients Also Buy
SG117AG-DESC
IC REG LINEAR POS ADJ 1.5A TO257
MCP1812BT-012/HCA
IC REG LINEAR 300MA 4UDFN

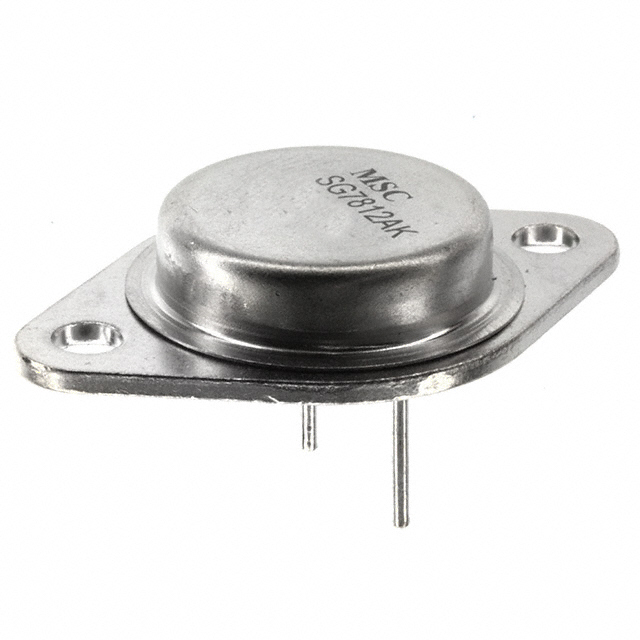

SG7812AK-DESC
