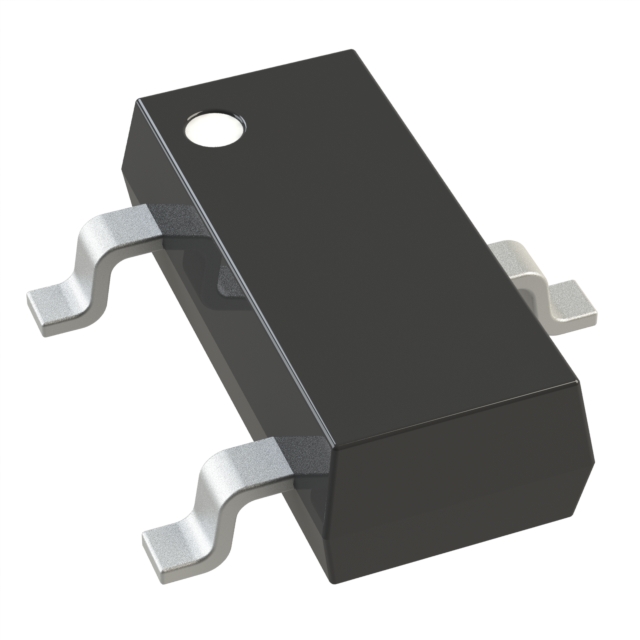

MCP1811BT-012/LB
IC REG LINEAR 1.2V 150MA SC70-3Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology MCP1811BT-012-LB is a fixed, positive linear voltage regulator with a 1.2V output. This low quiescent current device, drawing only 0.5 µA, is designed for battery-powered applications. It provides a stable 150mA output current with a typical dropout voltage of 0.6V at 150mA. The regulator features an enable pin for power sequencing and overcurrent protection. It operates from an input voltage range up to 5.5V and is housed in a compact SC-70-3 surface-mount package, supplied on tape and reel. Applications include portable electronics, sensor modules, and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 0.5 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-70-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 50dB (1kHz) |
| Voltage Dropout (Max) | 0.6V @ 150mA |
| Protection Features | Over Current |
| Current - Supply (Max) | 110 µA |
