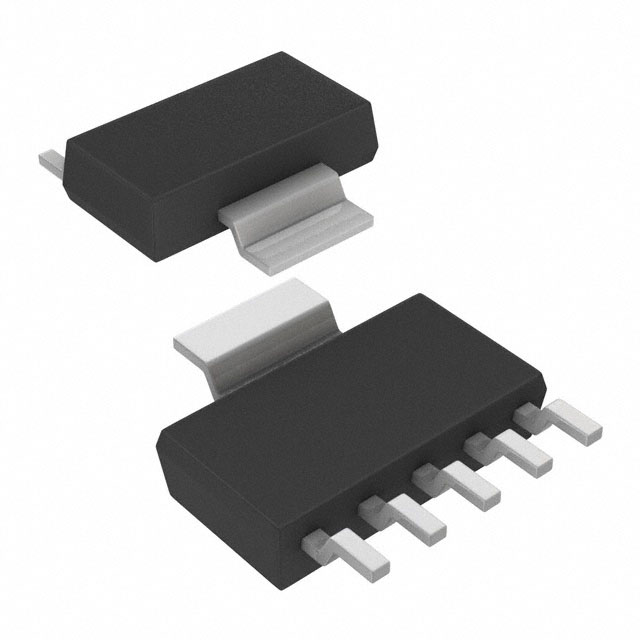

MCP1791T-5002E/DCVAO
IC REG LINEAR 5V 70MA SOT223-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 70mA SOT-223-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-223-6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 70mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 90dB ~ 80dB (100Hz ~ 1kHz) |
| Voltage Dropout (Max) | 1.3V @ 70mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 210 µA |
| Qualification | AEC-Q100 |
