MCP1791T-3302E/DC

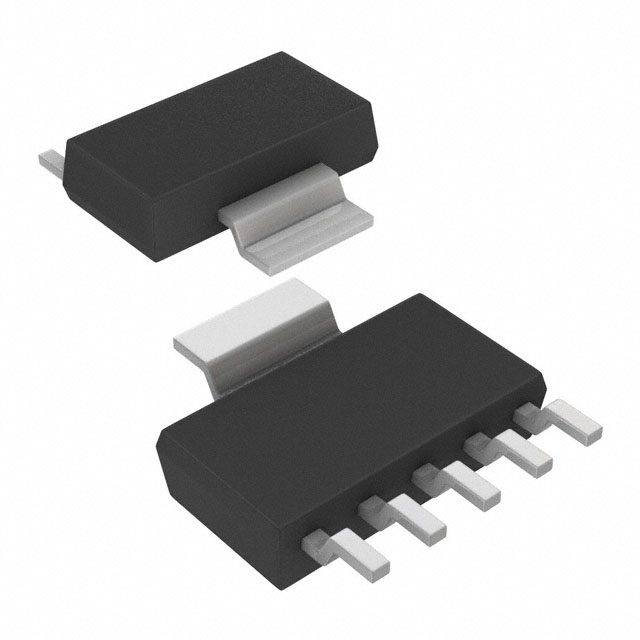

IC REG LINEAR 3.3V 70MA SOT223-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology Linear Voltage Regulator, MCP1791T-3302E-DC, offers a fixed 3.3V output with a 70mA current capability. This device is designed for applications requiring stable voltage regulation, featuring an input voltage range up to 30V. The regulator includes an Enable pin for control and a Power Good output for system monitoring. Protection features include over-temperature and short-circuit protection. With a typical quiescent current of 130 µA, it is suitable for power-sensitive designs. The dropout voltage is rated at a maximum of 1.3V at 70mA. This component is supplied in a SOT-223-5 package, surface-mount compatible, and offered in Tape & Reel (TR) packaging. Its performance characteristics, including a Power Supply Rejection Ratio (PSRR) of 90dB to 80dB across the 100Hz to 1kHz range, make it applicable in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-223-6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 70mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable, Power Good |
| PSRR | 90dB ~ 80dB (100Hz ~ 1kHz) |
| Voltage Dropout (Max) | 1.3V @ 70mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 210 µA |
