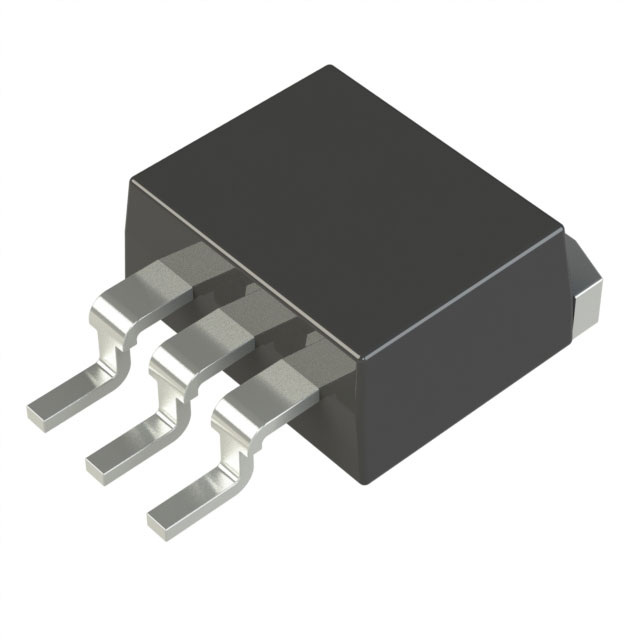

MCP1790-3002E/EB
IC REG LINEAR 3V 70MA 3DDPAKManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology's MCP1790-3002E-EB is a fixed 3V positive linear voltage regulator offering a 70mA output current. This LDO regulator features a low quiescent current of 130 µA and a maximum input voltage of 30V. The device provides robust protection with over-temperature and short-circuit capabilities. With a dropout voltage of 1.3V at 70mA and a typical power supply rejection ratio (PSRR) ranging from 90dB to 80dB across 100Hz to 1kHz, it is suitable for applications requiring stable voltage regulation. The MCP1790-3002E-EB is supplied in a TO-263-4, D2PAK (3 Leads + Tab) package, designed for surface mounting. This component finds utility in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 70mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | DDPAK-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | - |
| PSRR | 90dB ~ 80dB (100Hz ~ 1kHz) |
| Voltage Dropout (Max) | 1.3V @ 70mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 210 µA |
