MCP1722T-3310H/Q8BVAO
HIGH VOLTAGE DUAL OUTPUT LDO 3.3Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

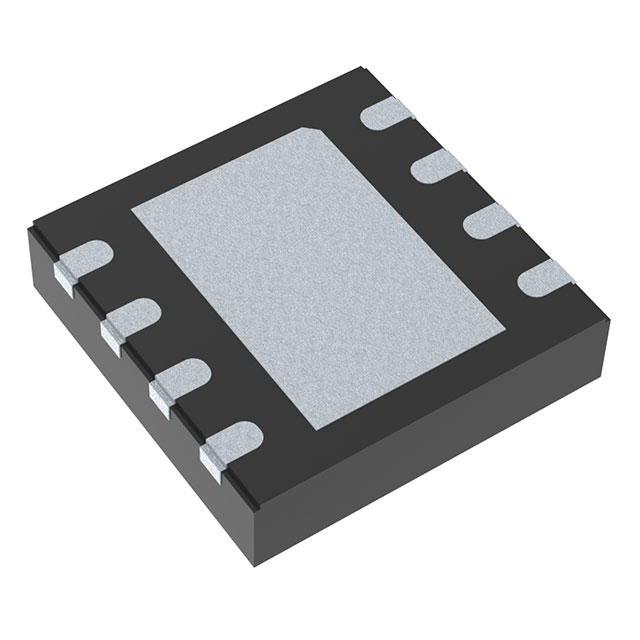

Linear Voltage Regulator IC Positive Fixed 2 Output 50mA, 100mA 8-VDFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount, Wettable Flank |
| Current - Output | 50mA, 100mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 55V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-VDFN (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1V, 3.3V |
| Control Features | Enable, Power Good |
| Grade | Automotive |
| PSRR | 80dB (100Hz) |
| Voltage Dropout (Max) | 0.75V @ 50mA, 0.75V @ 100mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Qualification | AEC-Q100 |
