MCP1710T-30I/LZ
IC REG LINEAR 3V 200MA 8VDFNManufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology MCP1710T-30I-LZ is a low quiescent current linear voltage regulator. This positive fixed output device provides 3V with a maximum output current of 200mA. It features a typical quiescent current of 20 nA, making it suitable for battery-powered applications. The device offers a voltage dropout of 0.45V at 200mA and a maximum input voltage of 5.5V. Protection features include over-current protection. The PSRR is 22dB at 100Hz. This component is supplied in an 8-VDFN (2x2) package, surface mountable, and is available on tape and reel. The MCP1710T-30I-LZ is utilized in industrial, consumer electronics, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

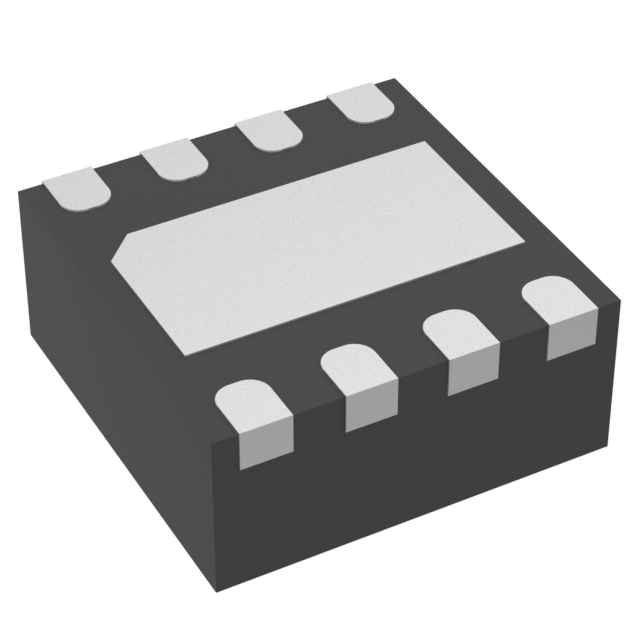

| Package / Case | 8-VFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 20 nA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-VDFN (2x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 22dB (100Hz) |
| Voltage Dropout (Max) | 0.45V @ 200mA |
| Protection Features | Over Current |
