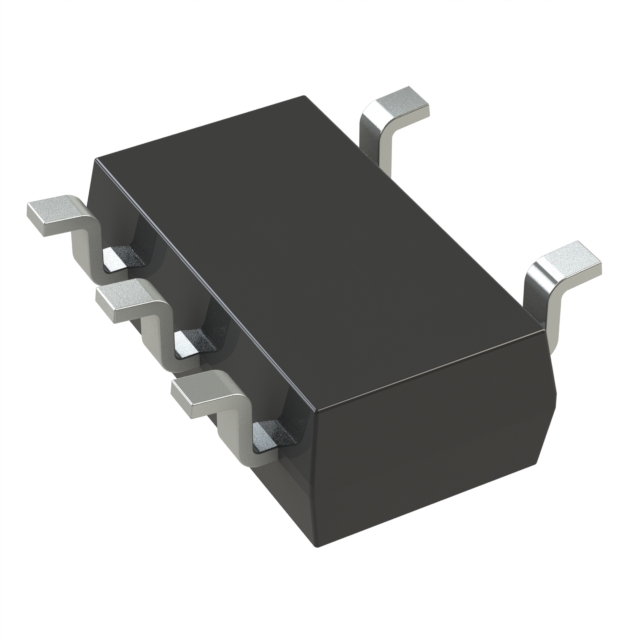

LX8211-00ISE-TR
IC REG LIN POS ADJ 150MA SOT23-5Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microchip Technology LX8211-00ISE-TR is an adjustable positive linear voltage regulator IC. This component delivers up to 150mA output current with a low dropout voltage of 0.4V at the maximum output current. Featuring over-temperature and short-circuit protection, it operates from an input voltage up to 6V and provides an adjustable output voltage range from 1.175V to 5.6V. The LX8211-00ISE-TR includes an enable pin for power control and exhibits a Power Supply Rejection Ratio (PSRR) of 50dB at 120Hz. Its quiescent current is typically 220 µA. Supplied in a SOT-23-5 package, this device is suitable for surface mounting and is delivered on tape and reel. This regulator is commonly utilized in portable electronics, battery-powered devices, and communication infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 220 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | 5.6V |
| Voltage - Output (Min/Fixed) | 1.175V |
| Control Features | Enable |
| PSRR | 50dB (120Hz) |
| Voltage Dropout (Max) | 0.4V @ 150mA |
| Protection Features | Over Temperature, Short Circuit |
