LP2950-03BZ
IC REG LINEAR 5V 100MA TO92-3Manufacturer: Microchip Technology
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

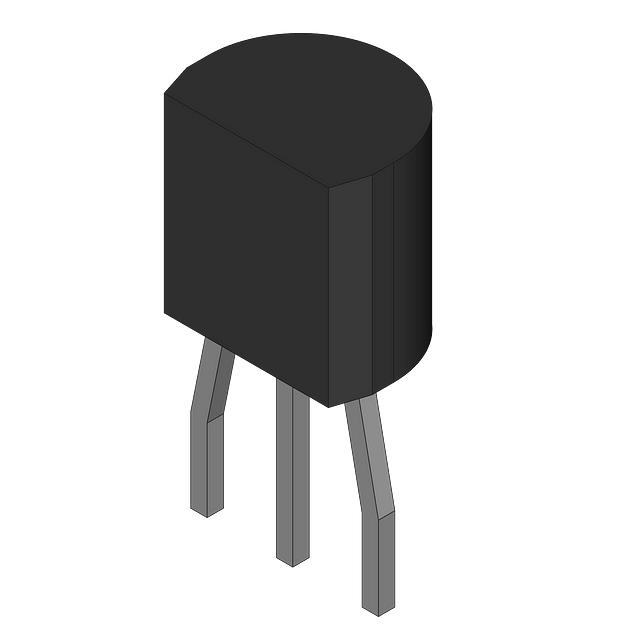

Microchip Technology LP2950-03BZ is a positive, fixed output linear voltage regulator. This component provides a stable 5V output with a maximum current capability of 100mA. Designed for efficient operation, it features a low quiescent current of 150 µA and a maximum input voltage of 30V. The voltage dropout is rated at 0.6V at 100mA, making it suitable for applications where power efficiency is critical. The LP2950-03BZ is housed in a standard TO-92-3 package, facilitating through-hole mounting. This device finds application in various industries, including automotive and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-92-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Protection Features | - |
| Current - Supply (Max) | 14 mA |
