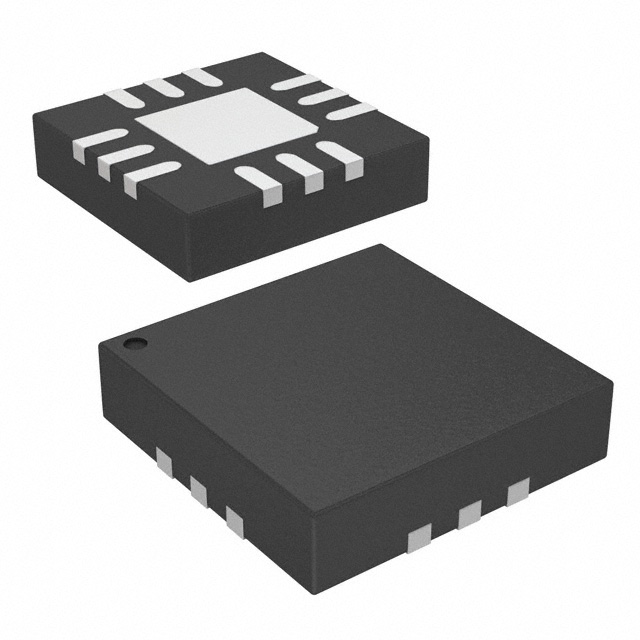

HV860K7-G
IC EL LAMP DRIVER 200KHZ 12QFNManufacturer: Microchip Technology
Categories: Lighting, Ballast Controllers
Quality Control: Learn More
Microchip Technology's HV860K7-G is an Electroluminescent (EL) lamp driver controller designed for efficient operation across a 40kHz to 200kHz frequency range. This device features integrated dimming capabilities and operates from a 2.5V to 4.5V supply, drawing a mere 16mA of quiescent current. Packaged in a compact 12-QFN (3x3) surface-mount configuration, the HV860K7-G is suitable for high-density applications. Its robust design and precise control make it ideal for lighting solutions in automotive interiors, industrial displays, and consumer electronics where reliable EL lamp illumination is critical. The component is supplied on tape and reel for high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 40kHz ~ 200kHz |
| Type | EL Lamp Driver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 4.5V |
| Supplier Device Package | 12-QFN (3x3) |
| Dimming | Yes |
| Current - Output Source/Sink | - |
| Current - Supply | 16 mA |
