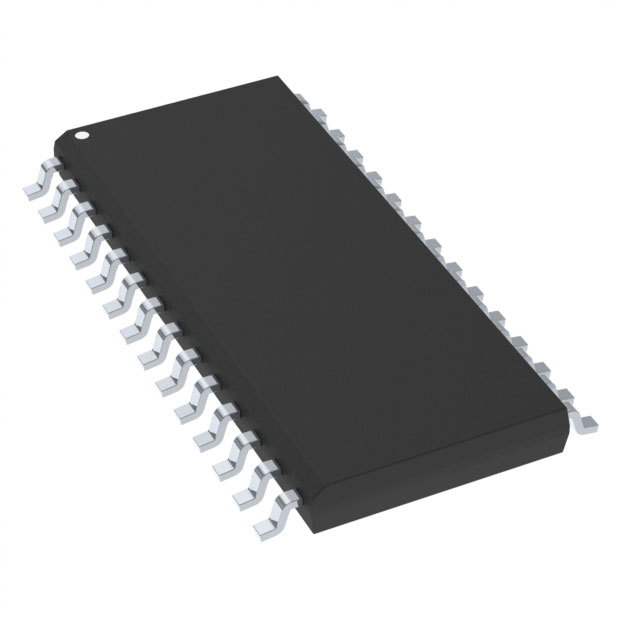

MIC5400BWM-TR
IC LED DRIVER LINEAR 30MA 28SOICManufacturer: Microchip Technology
Categories: LED Drivers
Quality Control: Learn More
The Microchip Technology MIC5400BWM-TR is a 16-channel linear LED driver IC. This device offers individual channel current control, with each output capable of sourcing up to 30mA. Designed for efficient operation, it features internal switches and operates from a supply voltage range of 4.75V to 5.5V. The MIC5400BWM-TR is housed in a 28-SOIC package, suitable for surface mounting. Its linear dimming capability and high channel count make it a robust solution for applications requiring precise LED current management in areas such as general lighting and display backlighting. The component operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | - |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 28-SOIC |
| Dimming | - |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 5.5V |
