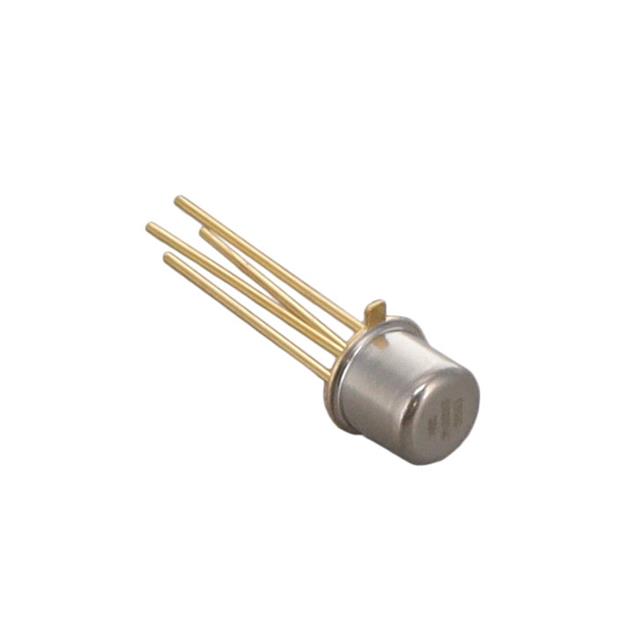

2N3823
JFET N-CH 30V TO72Manufacturer: Microchip Technology
Categories: JFETs
Quality Control: Learn More
JFET N-Channel 30 V 300 mW Through Hole TO-72
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 6pF @ 15V |
| Voltage - Breakdown (V(BR)GSS) | 30 V |
| Supplier Device Package | TO-72 |
| Grade | Military |
| Drain to Source Voltage (Vdss) | 30 V |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 8 V @ 500 pA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 20 mA @ 15 V |
| Qualification | MIL-PRF-19500/375 |
