TC1029EUA
IC OPAMP GP 2 CIRCUIT 8MSOPManufacturer: Microchip Technology
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

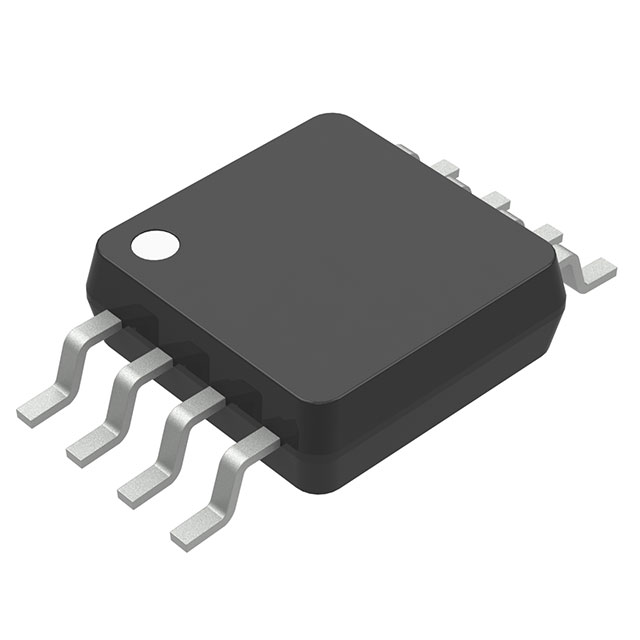

Microchip Technology TC1029EUA is a 2-circuit general-purpose operational amplifier featuring rail-to-rail output. This device operates with a supply voltage range from 1.8V to 5.5V, drawing a low quiescent current of 12µA per channel. It boasts a gain bandwidth product of 90 kHz and a slew rate of 0.035V/µs, making it suitable for low-power applications. Key parameters include an input bias current of 50 pA and an input offset voltage of 100 µV. The TC1029EUA is housed in an 8-MSOP package for surface mounting. This component finds application in battery-powered devices, sensor conditioning, and portable instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 12µA (x2 Channels) |
| Slew Rate | 0.035V/µs |
| Gain Bandwidth Product | 90 kHz |
| Current - Input Bias | 50 pA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-MSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 4 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
