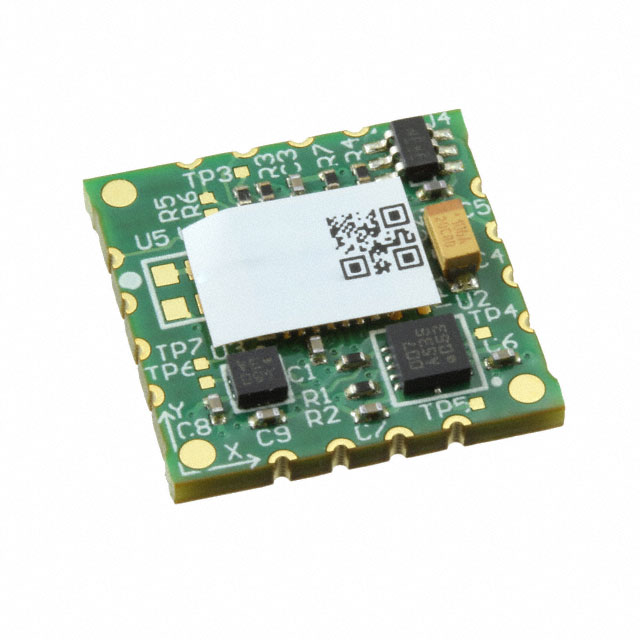

MM7150I-AB1
IMU ACCEL/GYRO/MAG 3-AXIS I2CManufacturer: Microchip Technology
Categories: IMUs (Inertial Measurement Units)
Quality Control: Learn More
The Microchip Technology MM7150I-AB1 is a 9-axis inertial measurement unit (IMU) integrating accelerometer, gyroscope, and magnetometer sensors. This surface-mount component utilizes an I2C interface for data output, facilitating seamless integration into designs. Packaged in a 16-SMD Module, it operates within a temperature range of 0°C to 70°C. Its multi-axis sensing capabilities make it suitable for applications in consumer electronics, industrial automation, and automotive systems where precise motion and orientation tracking are critical. The MM7150I-AB1 is delivered in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-SMD Module |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Sensor Type | Accelerometer, Gyroscope, Magnetometer, 9 Axis |
| Supplier Device Package | Module |
Request a Quote
Clients Also Buy

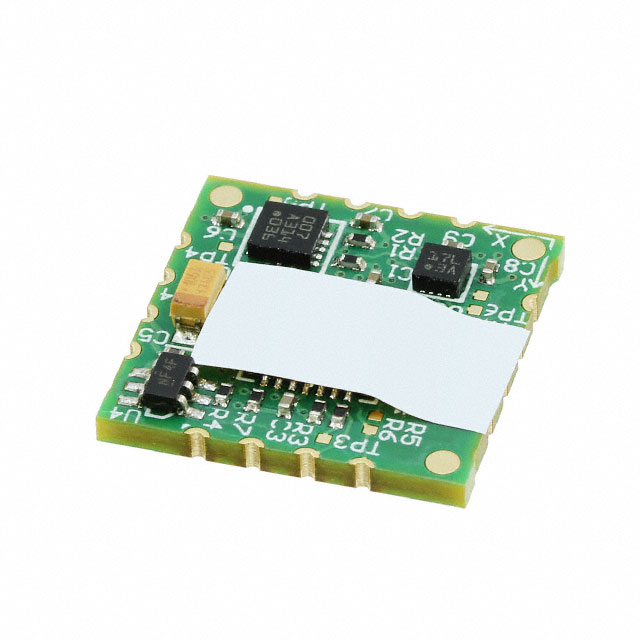

MM7150-AB0
IMU ACCEL/GYRO/MAG 3-AXIS I2C

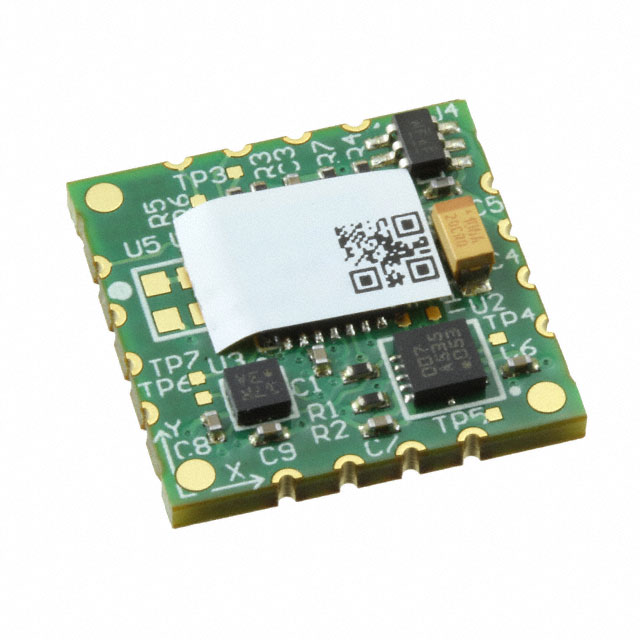

MM7150-AB1
