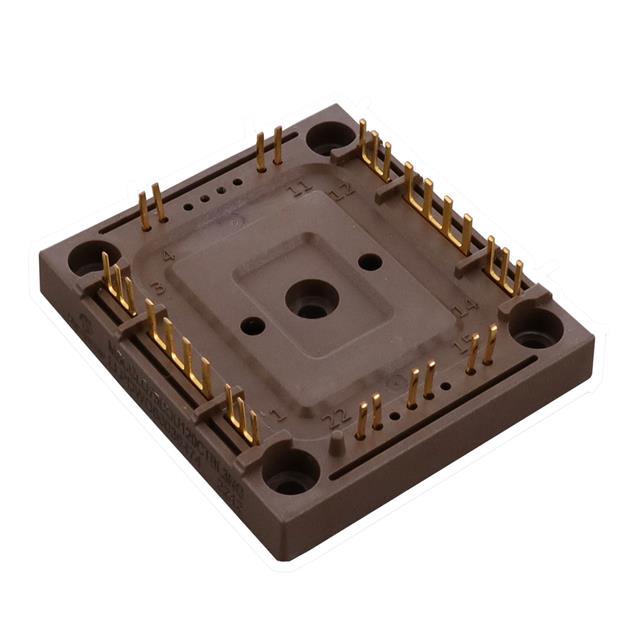

MSCGLQ75DDU120CTBL3NG
PM-IGBT-SBD-BL3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Full Bridge 1200 V 160 A 470 W Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 160 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 470 W |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 4.4 nF @ 25 V |
