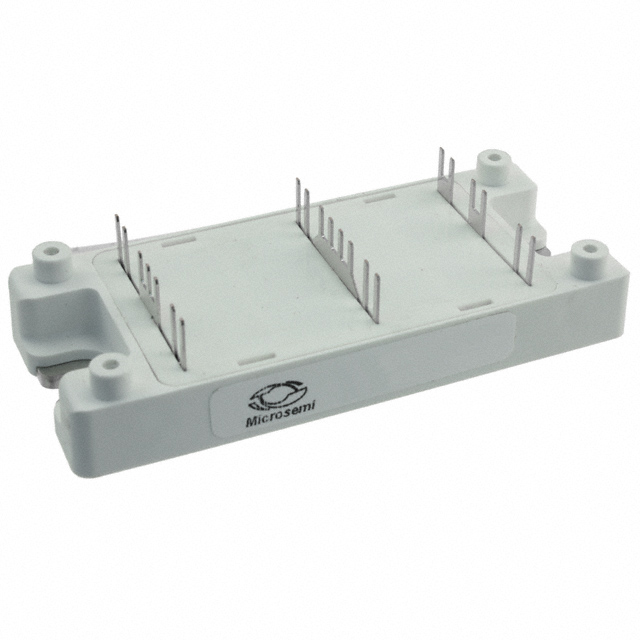

APTGT75SK120TG
IGBT MODULE 1200V 110A 357W SP4Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGT75SK120TG is a Trench Field Stop IGBT Module designed for high-power applications. This single-configuration module features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 110 A. With a maximum power dissipation of 357 W and a Vce(on) of 2.1V at 15V Vge and 75A Ic, it offers efficient switching performance. The module includes an integrated NTC thermistor for thermal monitoring and a robust SP4 package suitable for chassis mounting. Key electrical parameters include an input capacitance (Cies) of 5.34 nF at 25 V and a collector cutoff current of 250 µA. Operating across a temperature range of -40°C to 150°C (TJ), this component is utilized in industries such as industrial automation and power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP4 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 110 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 357 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 5.34 nF @ 25 V |
Request a Quote
