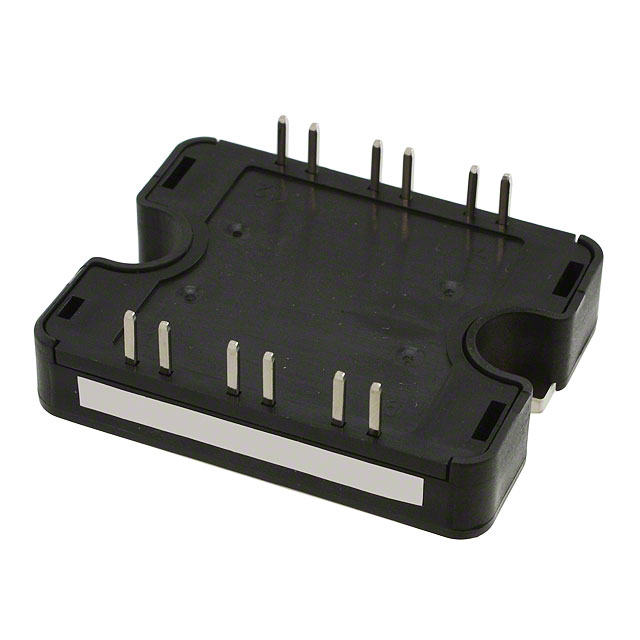

APTGT50A120T1G
IGBT MODULE 1200V 75A 277W SP1Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGT50A120T1G is a Trench Field Stop IGBT module featuring a Half Bridge configuration. This component is rated for 1200V with a continuous collector current capability of 75A and a maximum power dissipation of 277W. The module utilizes a Chassis Mount package, specifically the SP1, facilitating robust thermal management. Key electrical specifications include a Vce(on) of 2.1V at 15V Vge and 50A Ic, and an input capacitance (Cies) of 3.6 nF at 25V. An integrated NTC thermistor is included for temperature monitoring. This device is suitable for applications requiring high voltage and current switching, commonly found in industrial motor drives, renewable energy systems, and power conversion equipment. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP1 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP1 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 277 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.6 nF @ 25 V |
