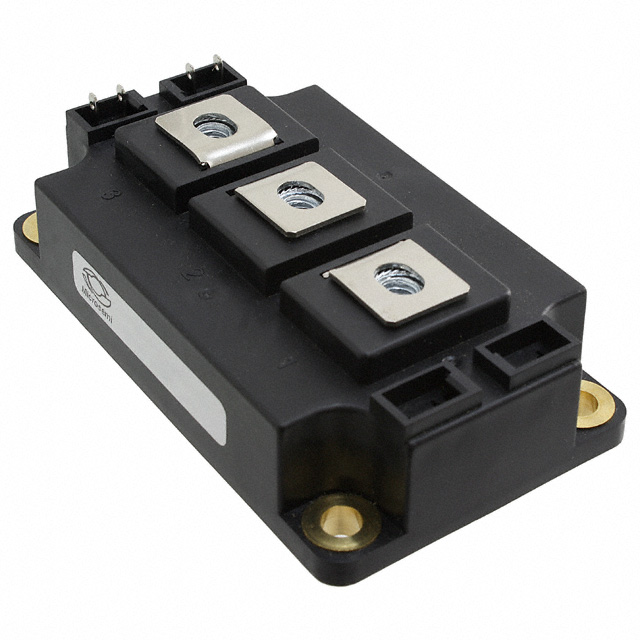

APTGT400A120D3G
IGBT MODULE 1200V 580A 2100W D3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGT400A120D3G is a Trench Field Stop IGBT module featuring a half-bridge configuration. This module is rated for 1200V collector-emitter breakdown voltage and a maximum collector current of 580A. The device offers a low on-state voltage of 2.1V at 15V gate-emitter voltage and 400A collector current, with a maximum power dissipation of 2100W. It includes standard input characteristics and an input capacitance (Cies) of 29 nF at 25V. The APTGT400A120D3G is designed for chassis mounting and operates across a temperature range of -40°C to 150°C. This component is suitable for applications in industrial power conversion, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-3 Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 400A |
| NTC Thermistor | No |
| Supplier Device Package | D3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 580 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2100 W |
| Current - Collector Cutoff (Max) | 750 µA |
| Input Capacitance (Cies) @ Vce | 29 nF @ 25 V |
Request a Quote
Clients Also Buy
APTGT30TL601G
IGBT MODULE 600V 50A 90W SP1
APTGT100DA120T1G
IGBT MODULE 1200V 140A 480W SP1

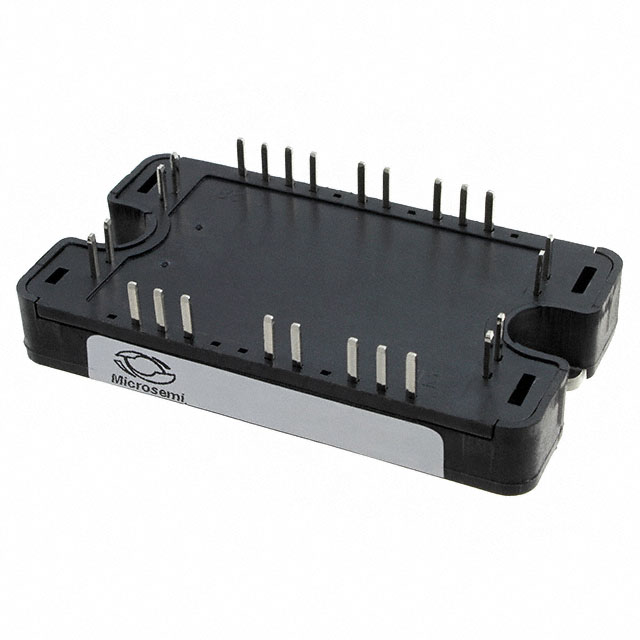

APTGT200DA60T3AG
