APTGT300DU170G

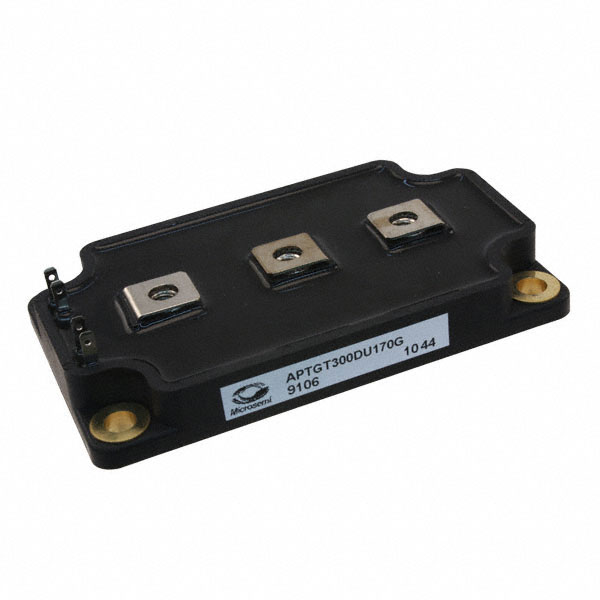

IGBT MODULE 1700V 400A 1660W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGT300DU170G is a Trench Field Stop Dual IGBT Module featuring a common source configuration. This module is rated for 1700 V collector-emitter breakdown voltage and a continuous collector current of up to 400 A, with a maximum power dissipation of 1660 W. The on-state voltage drop is specified at 2.4 V at 15 V gate-emitter voltage and 300 A collector current. Input capacitance (Cies) is 26.5 nF at 25 V.
Designed for robust performance, this module is suitable for demanding applications in industrial motor drives, electric vehicles, and power generation systems. The device operates within a temperature range of -40°C to 150°C (TJ) and utilizes a chassis mount, SP6 package for efficient thermal management. The APTGT300DU170G offers a standard input type and is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Common Source |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 1660 W |
| Current - Collector Cutoff (Max) | 750 µA |
| Input Capacitance (Cies) @ Vce | 26.5 nF @ 25 V |
