APTGT300DU120G

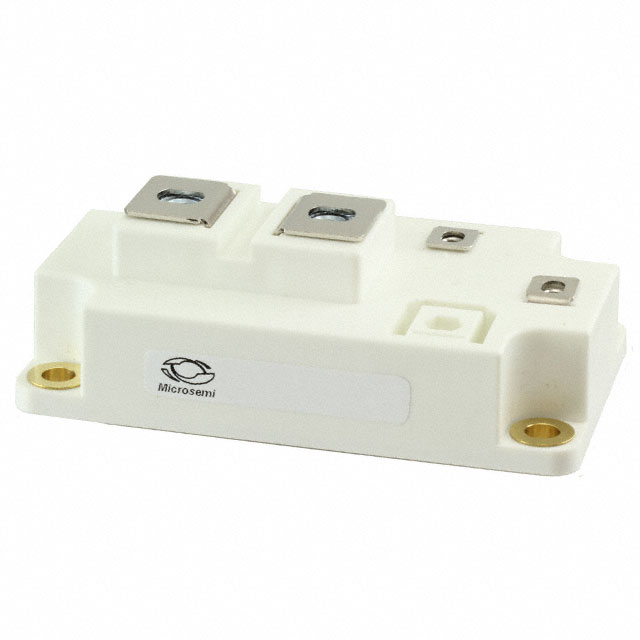

IGBT MODULE 1200V 420A 1380W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGT300DU120G is a Trench Field Stop Dual IGBT Module. This component features a common source configuration and a robust 1200 V collector-emitter breakdown voltage. It is rated for a maximum continuous collector current of 420 A and a power dissipation of 1380 W. The module exhibits a low on-state voltage of 2.1 V at 15 V gate-emitter voltage and 300 A collector current. With an input capacitance of 21 nF at 25 V, this IGBT module is suitable for demanding applications in industrial motor drives, power supplies, and renewable energy systems. The APTGT300DU120G utilizes the SP6 package for efficient chassis mounting and operates reliably across a temperature range of -40°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Common Source |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 420 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1380 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
