APTGT200DU120G

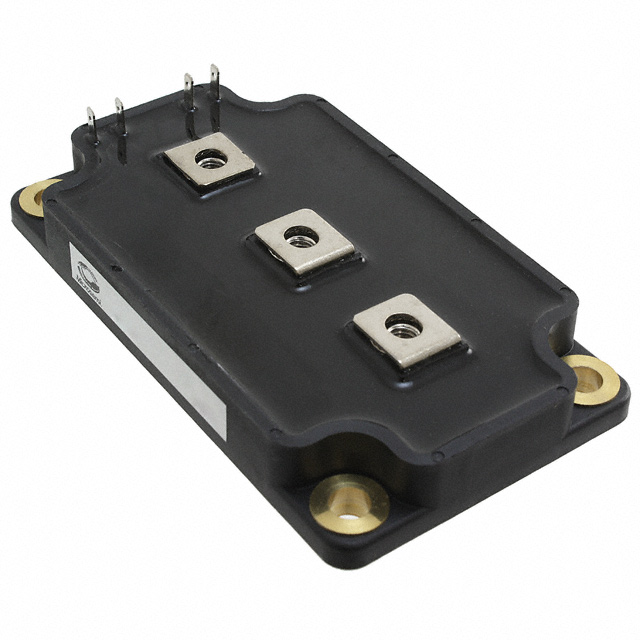

IGBT MODULE 1200V 280A 890W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGT200DU120G is a trench field stop dual IGBT module featuring a common source configuration. This component offers a 1200 V collector-emitter breakdown voltage and a maximum collector current of 280 A, with a maximum power dissipation of 890 W. The Vce(on) is specified at 2.1V at 15V Vge and 200A Ic. Input capacitance (Cies) is 14 nF at 25V. Designed for chassis mounting, this module operates within a temperature range of -40°C to 150°C (TJ). The APTGT200DU120G is utilized in applications such as industrial motor drives, power factor correction, and uninterruptible power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Common Source |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 280 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 890 W |
| Current - Collector Cutoff (Max) | 350 µA |
| Input Capacitance (Cies) @ Vce | 14 nF @ 25 V |
