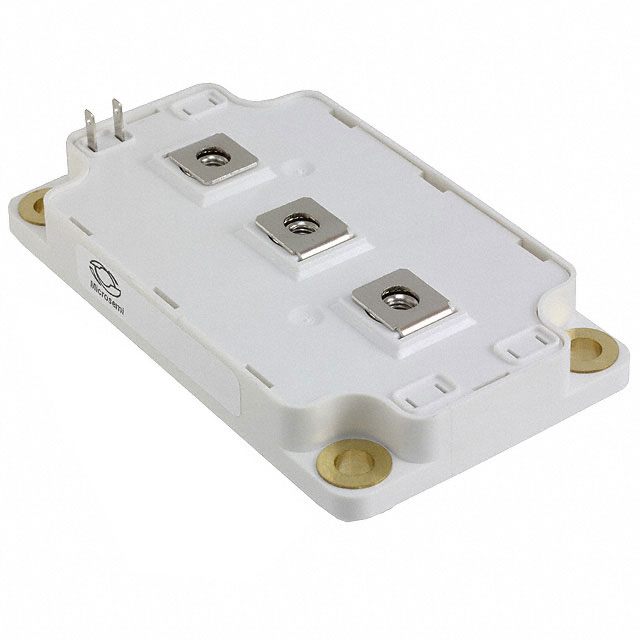

APTGT150DA120G
IGBT MODULE 1200V 220A 690W SP6Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGT150DA120G is a Trench Field Stop IGBT Module featuring a single configuration with a 1200 V collector-emitter breakdown voltage and a maximum collector current of 220 A. This module offers a maximum power dissipation of 690 W and a Vce(on) of 2.1V at 15V gate-emitter voltage and 150A collector current. The input capacitance (Cies) is 10.7 nF at 25V. Designed for chassis mounting, the APTGT150DA120G is suitable for demanding applications in industrial power conversion, electric vehicle powertrains, and renewable energy systems. The SP6 package ensures robust thermal performance and ease of integration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 220 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 690 W |
| Current - Collector Cutoff (Max) | 350 µA |
| Input Capacitance (Cies) @ Vce | 10.7 nF @ 25 V |
