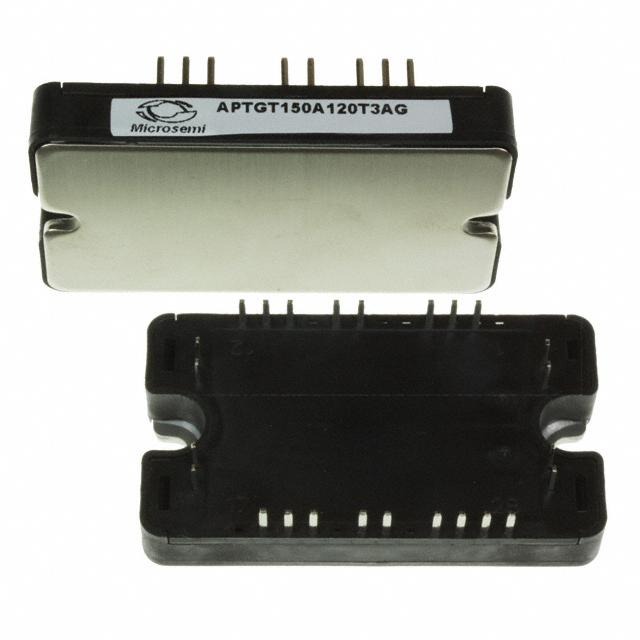

APTGT150A120T3AG
IGBT MODULE 1200V 220A 833W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
The Microchip Technology APTGT150A120T3AG is a Trench Field Stop IGBT module featuring a half-bridge configuration. This component is rated for 1200 V with a maximum collector current of 220 A and a maximum power dissipation of 833 W. It offers a low Vce(on) of 2.1V at 15V gate-emitter voltage and 150A collector current. The input capacitance (Cies) is 10.7 nF at 25V. Designed for chassis mounting, the module includes an integrated NTC thermistor for temperature monitoring and operates within a temperature range of -40°C to 150°C (TJ). This device is widely utilized in industrial motor drives, solar inverters, and power factor correction applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 220 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 833 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 10.7 nF @ 25 V |
