APTGT100TL60T3G

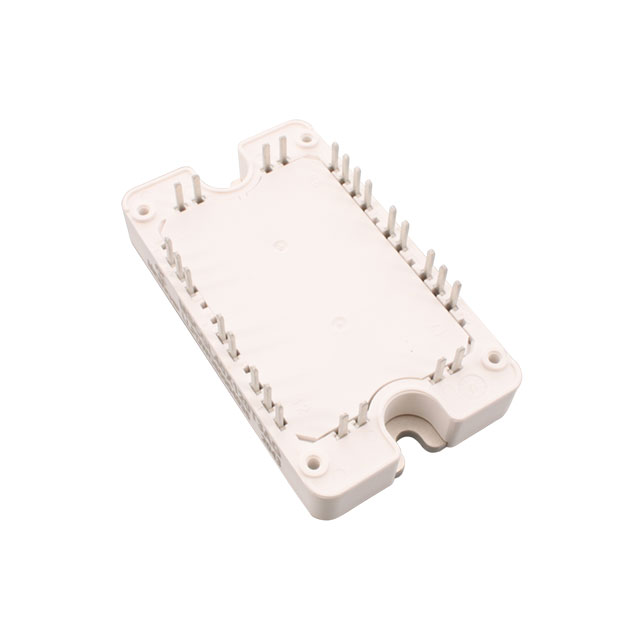

IGBT MODULE 600V 150A 340W SP3Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology's APTGT100TL60T3G is a Trench Field Stop IGBT Module designed for demanding power applications. This module features a 600V collector-emitter breakdown voltage and a maximum continuous collector current of 150A, with a collector cutoff current of 250µA. The IGBT type is Trench Field Stop, offering efficient switching characteristics. Its Vce(on) is specified at 1.9V maximum at 15V Vge and 100A Ic. The module includes an NTC thermistor for thermal management and operates across a wide temperature range of -40°C to 175°C (TJ). The APTGT100TL60T3G is configured as a Three Level Inverter, suitable for industrial motor drives, renewable energy systems, and power factor correction circuits. It is supplied in a Chassis Mount SP3 package for robust thermal dissipation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 340 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 6.1 nF @ 25 V |
