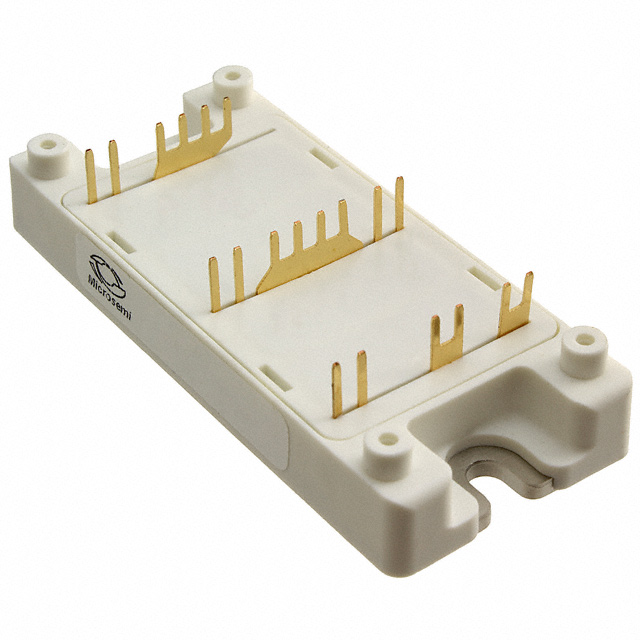

APTGT100DU60TG
IGBT MODULE 600V 150A 340W SP4Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
This Microchip Technology APTGT100DU60TG is a Trench Field Stop Dual IGBT module featuring a common source configuration. It provides a 600V collector-emitter breakdown voltage with a maximum collector current of 150A. The module is rated for 340W maximum power dissipation. Key electrical parameters include a typical Vce(on) of 1.9V at 15V Vge and 100A Ic, and an input capacitance (Cies) of 6.1 nF at 25V. An integrated NTC thermistor is included for thermal monitoring. This component is designed for chassis mounting and operates across a wide temperature range of -40°C to 175°C (TJ). Applications for this type of device span industries such as industrial automation, power supplies, and motor control. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Dual, Common Source |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP4 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 340 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 6.1 nF @ 25 V |
