APTGT100A60T1G

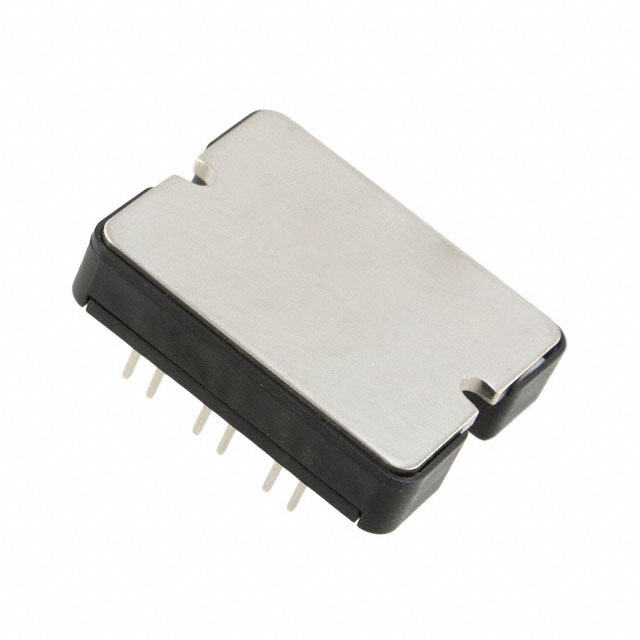

IGBT MODULE 600V 150A 340W SP1Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGT100A60T1G is a Trench Field Stop IGBT module featuring a half-bridge configuration within a SP1 chassis mount package. This component is rated for 600V collector-emitter breakdown voltage and offers a continuous collector current capability of 150A, with a maximum power dissipation of 340W. The IGBT type is Trench Field Stop, known for its efficient switching characteristics. Key parameters include a Vce(on) of 1.9V at 15V Vge and 100A Ic, and an input capacitance (Cies) of 6.1 nF at 25V. An integrated NTC thermistor is present for thermal monitoring. Operating temperatures range from -40°C to 175°C (TJ). This module is suitable for applications in industrial power supplies, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP1 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP1 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 340 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 6.1 nF @ 25 V |
