APTGT100A170TG

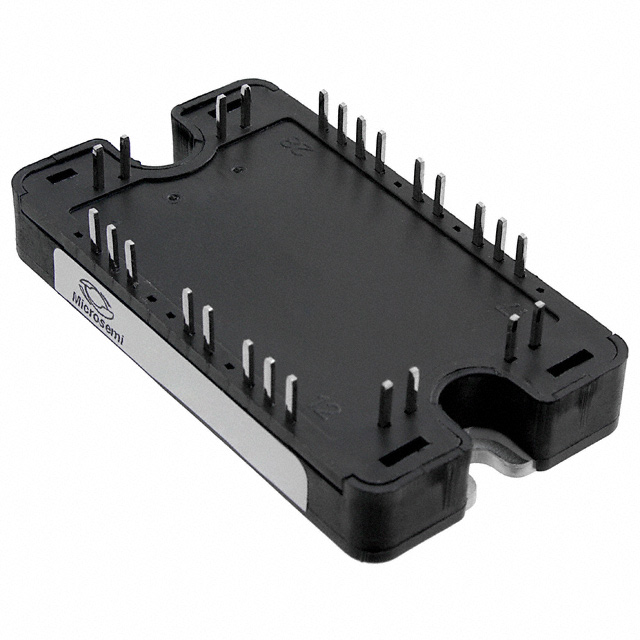

IGBT MODULE 1700V 150A 560W SP4Manufacturer: Microchip Technology
Categories: IGBT Modules
Quality Control: Learn More
Microchip Technology APTGT100A170TG Trench Field Stop IGBT Module. This half-bridge configuration features a 1700 V collector-emitter breakdown voltage and a continuous collector current capability of 150 A. The device offers a maximum power dissipation of 560 W and a low Vce(on) of 2.4V at 15V gate-emitter voltage and 100A collector current. Input capacitance (Cies) is 9 nF at 25 V. The module includes an integrated NTC thermistor for thermal management. Designed for chassis mounting, it operates within a temperature range of -40°C to 150°C (TJ). The SP4 package facilitates robust thermal performance. This component is suitable for applications in industrial power conversion, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP4 |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Power - Max | 560 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 9 nF @ 25 V |
